Wiring Diagram - Harness Routing (C-1b)

Z-57wiring diagram

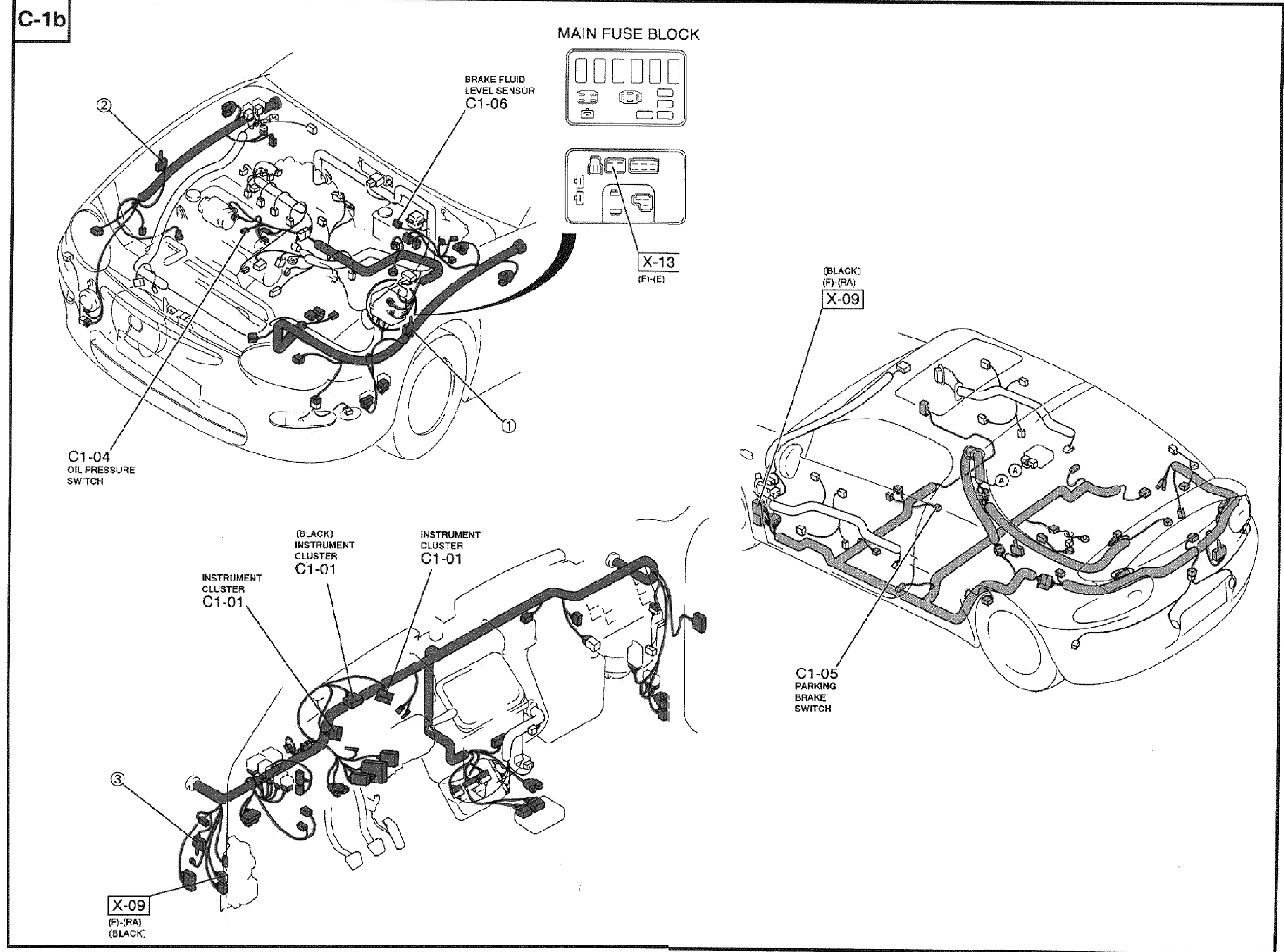

Full-page harness routing diagram (sheet C-1b) showing wiring harness layout over engine bay and instrument panel. Top-left: engine compartment view with brake fluid level sensor connector C1-06, oil pressure switch C1-04, and main fuse block (top center) feeding connector X-13 (F)-(E). Right: rear/under-dash harness routing with parking brake switch C1-05. Bottom-left: instrument panel harness with three instrument cluster connectors C1-01 (one labeled BLACK) and connector X-09 (F)-(FA) BLACK. Numbered route callouts 2 and 3. Header note: HARNESS COLOR FRONT/ENGINE/REAR legend.

C-1b

Support our work!

C-1b B6 DOHC - Instrument Cluster

Wiring Diagram - Harness Routing (C-1b)
