Mazda MX-3 silhouetteMX-3

Wiring Diagram - Harness Routing (C-1a)

Z-55wiring diagram

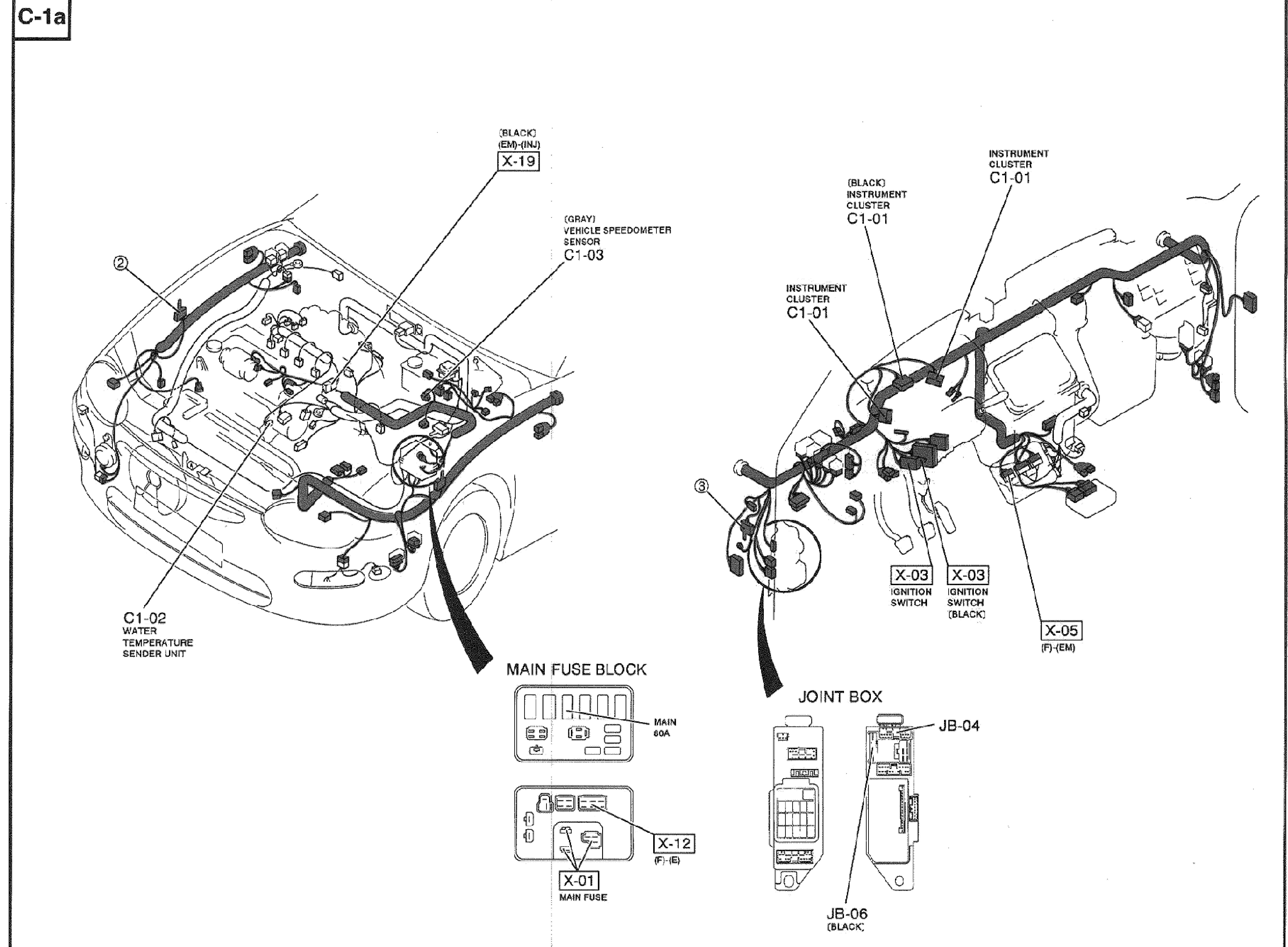

Full-page harness routing diagram (sheet C-1a). HARNESS COLOR legend top: FRONT / ENGINE. Left: engine bay / front view showing water temperature sender unit connector C1-02, vehicle speedometer sensor C1-03 (GRAY), connector X-19 (BLACK) (EM)-(EH), and ground callout 2. Right: instrument panel harness with three instrument cluster connectors C1-01 (one BLACK), ignition switch connectors X-03 (one BLACK), connector X-05 (F)-(EM), and ground callout 3. Bottom-center: MAIN FUSE BLOCK with MAIN 60A fuse, connectors X-01 (main fuse) and X-12 (F)-(R). Bottom-right: JOINT BOX with connectors JB-04 and JB-06 (BLACK).
C-1a
