Wiring Diagram - Harness Routing (C-2a)

Z-59wiring diagram

K8 1.8L V6 DOHC engine variant of harness routing (100A main fuse vs B6 60A/80A).

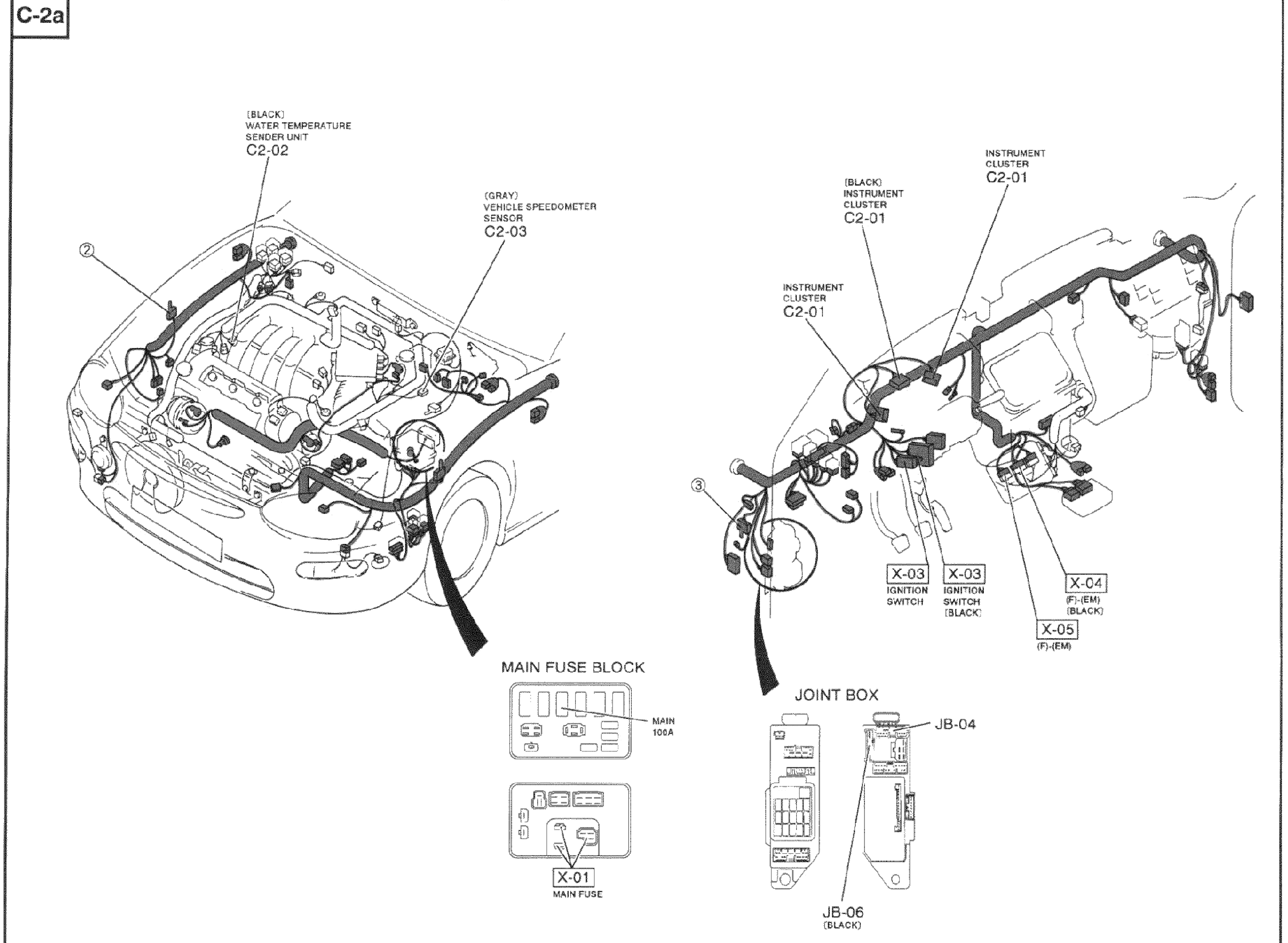

Full-page harness routing diagram (sheet C-2a) for K8 V6. HARNESS COLOR legend top: FRONT / ENGINE. Left: engine bay / front view (V6 engine) with water temperature sender unit connector C2-02 (BLACK), vehicle speedometer sensor C2-03 (GRAY), ground callout 2. Right: instrument panel harness with three instrument cluster connectors C2-01 (one BLACK), ignition switch connectors X-03 (one BLACK), connectors X-04 (F)-(EM), X-05 (F)-(EM), ground callout 3. Bottom-center: MAIN FUSE BLOCK with MAIN 100A fuse and connector X-01 (main fuse). Bottom-right: JOINT BOX with connectors JB-04 and JB-06 (BLACK).
C-2a
