Brake / High-Mount / Back-Up Lights — Harness Routing / Connector Locations (Circuit F-2)
Z-77wiring diagramF2-03 back-up light switch is MTX only. Main fuse block layout shown for K8 DOHC.
Brake / High-Mount / Back-Up Lights — Harness Routing (F-2)
NOTE
Harness color legend: FRONT, ENGINE, REAR. This page shows the physical routing and connector locations for the F-2 circuit; refer to page Z-76 for the schematic.

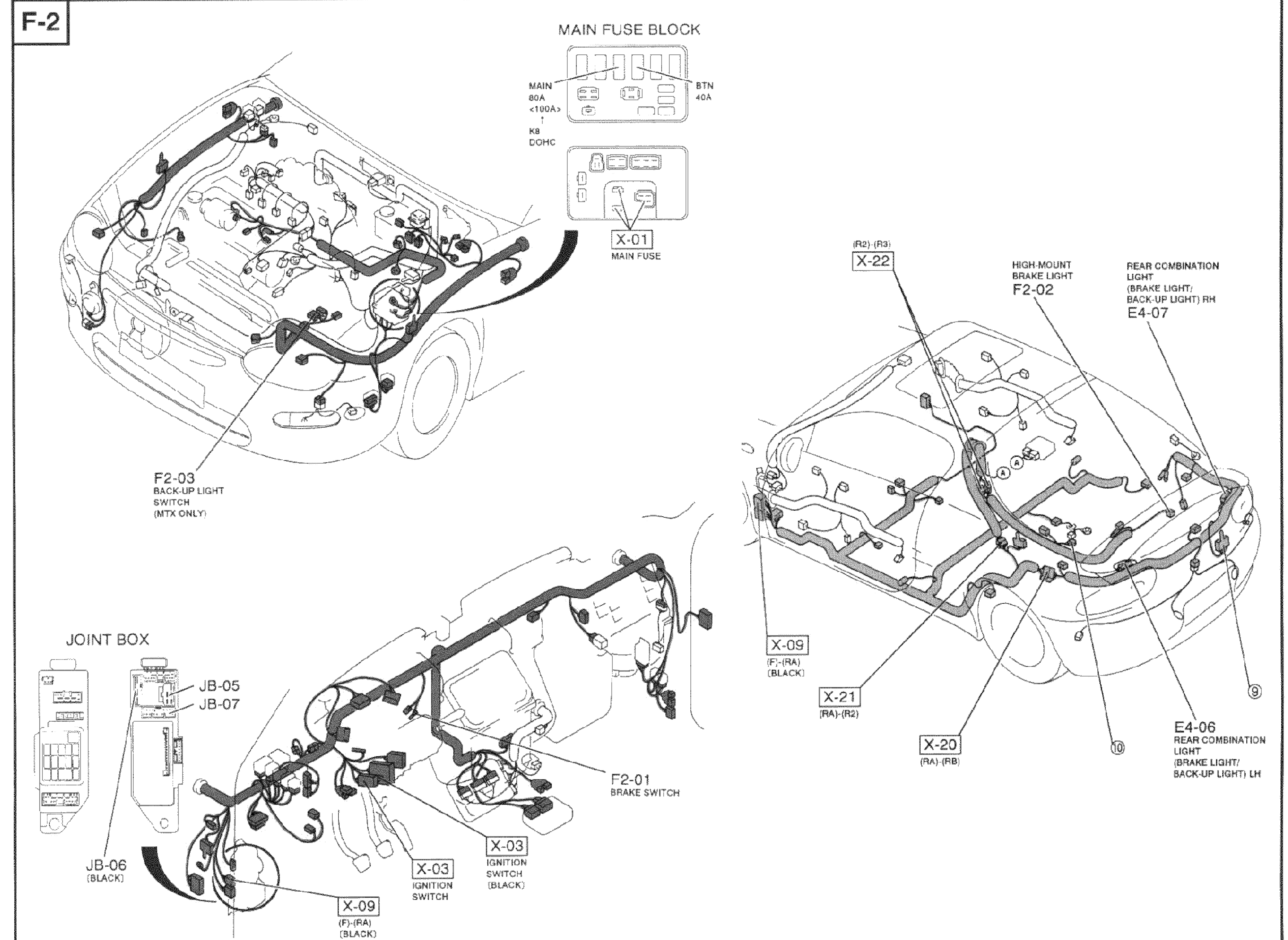

Component LocationFig. fig1
Connector and component locations for the Brake / High-Mount / Back-Up Lights circuit overlaid on the vehicle body.
F-2
1X-01(Main Fuse Block — Main Fuse (MAIN 80A/100A, BTN 40A, K8 DOHC))
2F2-03(Back-Up Light Switch (MTX only), engine compartment)
3JB-05 / JB-06 / JB-07(Joint Box (lower left); JB-06 black)
4F2-01(Brake Switch (instrument panel))
5X-03(Ignition Switch (black))
6X-09((F)(RA) black)
7X-21((RA)(R2))
8X-20((RA)(RB))
9X-22((R2)(R3))
10F2-02(High-Mount Brake Light (rear))
11E4-06(Rear LH — Rear Combination Light (brake light / back-up light))
12E4-07(Rear RH — Rear Combination Light (brake light / back-up light))
