Wiring Diagram - Harness Routing (C-2b)

Z-61wiring diagram

K8 1.8L V6 DOHC engine variant of harness routing.

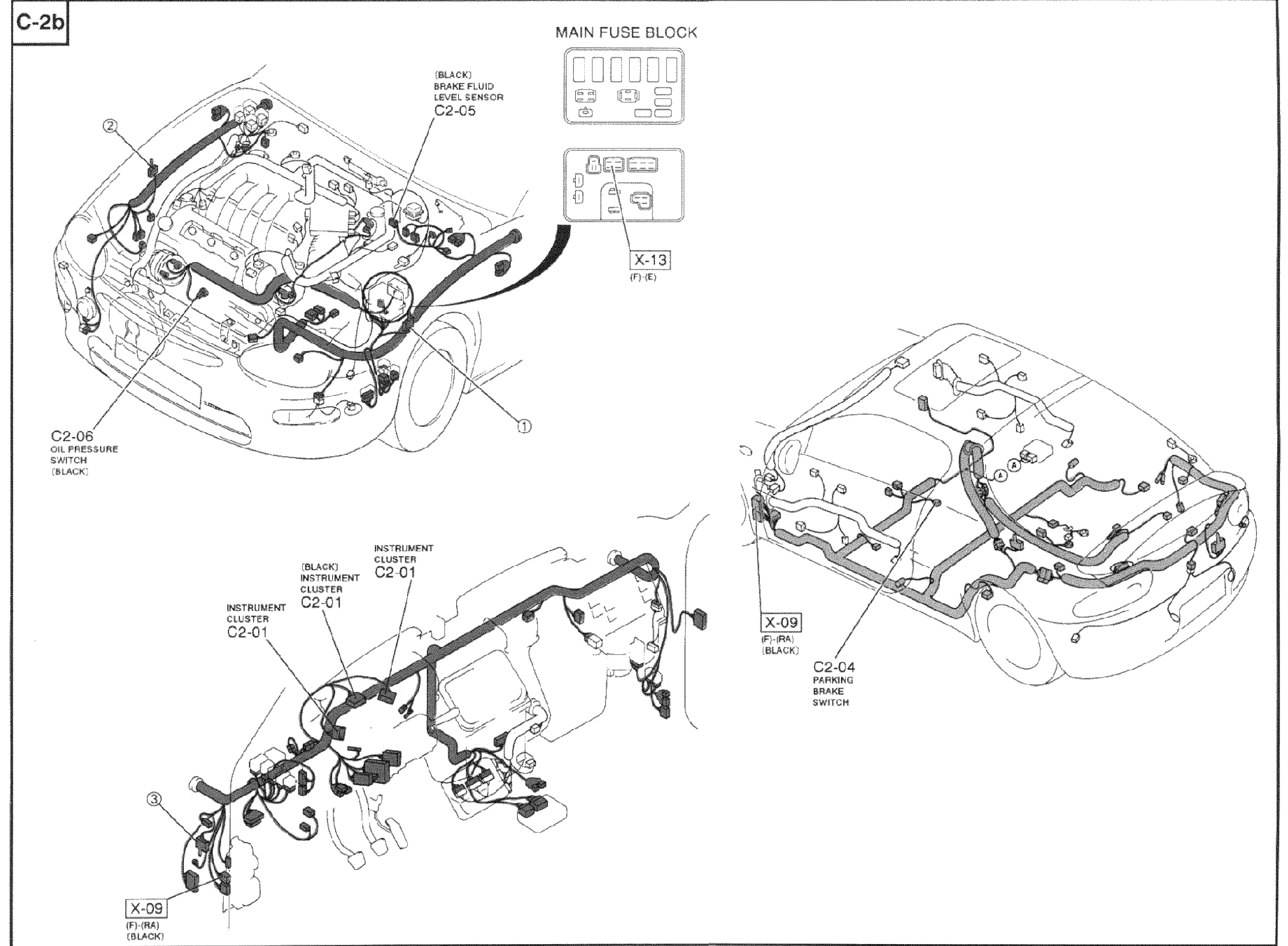

Full-page harness routing diagram (sheet C-2b) for K8 V6. HARNESS COLOR legend top: FRONT / ENGINE / REAR. Top-left: engine compartment (V6) with brake fluid level sensor connector C2-05 (BLACK), oil pressure switch C2-06 (BLACK), route callouts 2 and 1. Top-center: MAIN FUSE BLOCK feeding connector X-13 (F)-(R). Right: rear/under-body harness routing with parking brake switch C2-04, connector X-09 (F)-(RA) BLACK. Bottom-left: instrument panel harness with three instrument cluster connectors C2-01 (one BLACK), connector X-09 (F)-(RA) BLACK, route callout 3.
C-2b
