CLUTCH PEDAL

H-6prose procedure

ADJUSTMENT

1

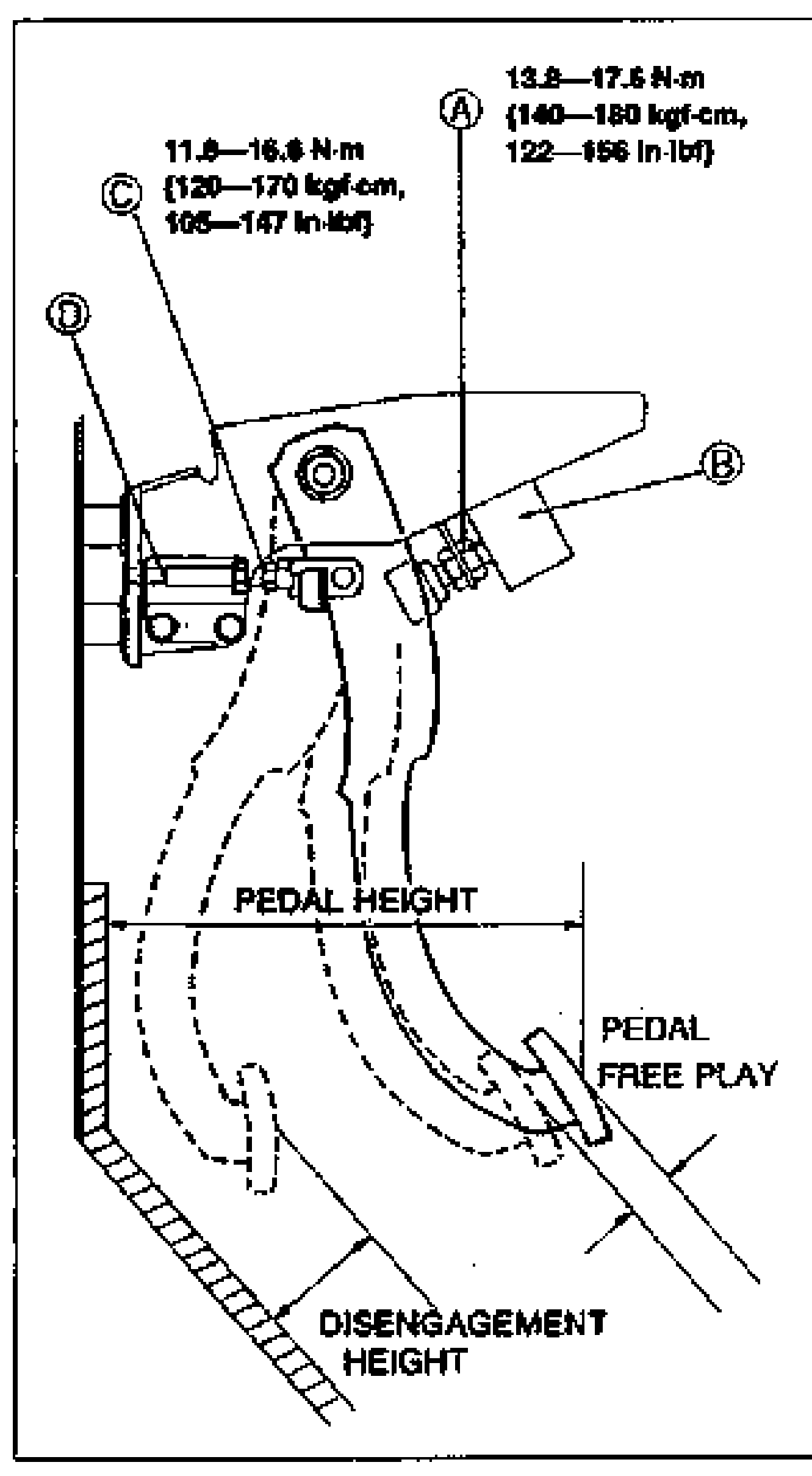

Measure the distance from the upper surface of the pedal pad to the carpet.
Pedal height: 199—204 mm {7.83—8.03 in} (with carpet)
2
If necessary, adjust the pedal height.

Specification	Value
Pedal heightwith carpet	199—204mm {7.83—8.03 in}

Pedal heightwith carpet

199—204mm {7.83—8.03 in}

1
Disconnect the clutch switch connector.
2
Loosen locknut (A) and turn clutch switch (B) until the height is correct.
3
Tighten locknut (A).
Tightening torque: 13.8—17.6 N·m {140—180 kgf·cm, 122—156 in·lbf}
4
After adjustment, measure the pedal free play.

Specification	Value
Clutch switch locknut	≈135 - 173N·m

Clutch switch locknut

135 - 173N·m

1
Depress the clutch pedal by hand until clutch resistance is felt.
Pedal free play: 0.6—3.2 mm {0.02—0.12 in}
Total pedal free play: 5—16 mm {0.19—0.63 in}
2
If necessary, adjust the pedal free play.

Specification	Value
Pedal free play	0.6—3.2mm {0.02—0.12 in}
Total pedal free play	5—16mm {0.19—0.63 in}

Pedal free play

0.6—3.2mm {0.02—0.12 in}

Total pedal free play

5—16mm {0.19—0.63 in}

1
Loosen locknut (C) and turn push rod (D) until the pedal free play is correct.
2
Verify that the disengagement height (from the upper surface of the pedal pad to the carpet) is correct when the pedal is fully depressed.
Minimum disengagement height: 39.5 mm {1.56 in} (with carpet)
3
Tighten locknut (C).
Tightening torque: 11.8—16.6 N·m {120—170 kgf·cm, 105—147 in·lbf}
4
After adjustment, measure the pedal height.

Specification	Value
Minimum disengagement heightwith carpet	39.5mm {1.56 in}
Push-rod locknut	≈116 - 163N·m

Minimum disengagement heightwith carpet

39.5mm {1.56 in}

Push-rod locknut

116 - 163N·m
