Clutch Unit, Clutch Cover
H-18prose procedurePilot bearing
Install a new pilot bearing by using a suitable pipe.
| Specification | Value |
|---|---|
| Pipe outer diameter | 35mm {1.378 in} |
| Depth of press | 0-0.4mm {0-0.016 in} |
Pipe outer diameter
35mm {1.378 in}
Depth of press
0-0.4mm {0-0.016 in}
Clutch disc
- 1Clean the clutch disc splines and primary shaft gear splines.
- 2Apply molybdenum sulfide to the splines.

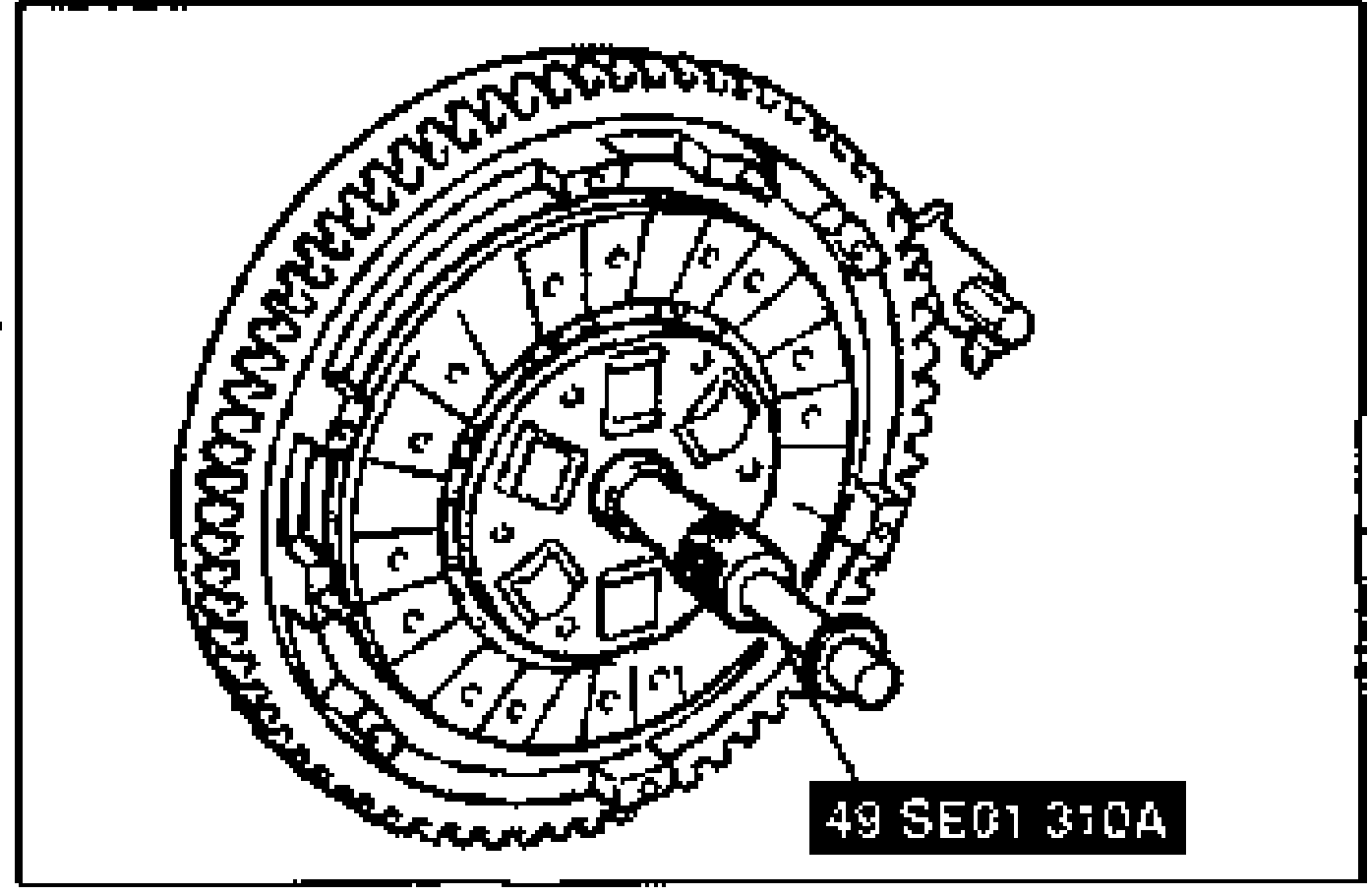

- 3Hold the clutch disc in position by using the SST.
Clutch cover
- 1Align the dowel holes with the flywheel dowels.
- 2Install the SST or equivalent.

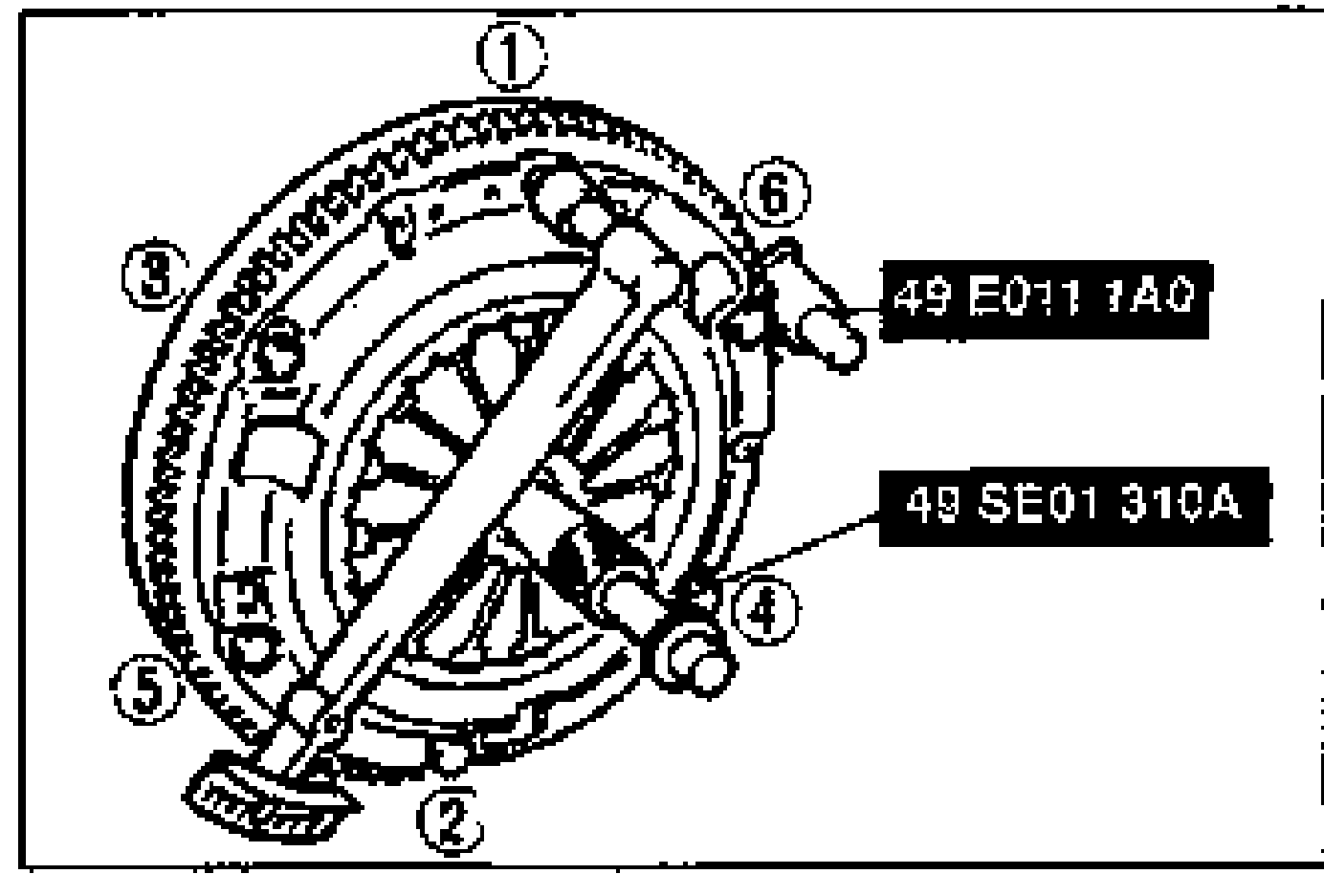

- 3Tighten the bolts evenly and gradually in the pattern shown.
| Specification | Value |
|---|---|
| Clutch cover bolts | ≈177 - 255N·m |
Clutch cover bolts
177 - 255N·m
Clutch Cover
Inspection
- 1Measure wear of the diaphragm spring fingers.Depth: 0.6 mm {0.024 in} max.
- 2Inspect the flatness of the pressure plate contact surface with a straightedge and a feeler gauge.Maximum: 0.5 mm {0.020 in}
| Specification | Value |
|---|---|
| Diaphragm spring finger wear depthmax. | 0.6mm {0.024 in} |
| Pressure plate flatnessMaximum | 0.5mm {0.020 in} |
Diaphragm spring finger wear depthmax.
0.6mm {0.024 in}
Pressure plate flatnessMaximum
0.5mm {0.020 in}
