OIL PUMP
D2-13prose procedure| Specification | Value |
|---|---|
| Side clearancestandard | 0.03–0.09 mm {0.0012–0.0035 in}mm |
| Side clearance (Maximum)maximum | 0.13 mm {0.0051 in}mm |
Side clearancestandard
0.03–0.09 mm {0.0012–0.0035 in}mm
Side clearance (Maximum)maximum
0.13 mm {0.0051 in}mm
Assembly Note
Inner and outer rotor
- 1Apply clean engine oil to the friction surface of the pump body and the rotors.

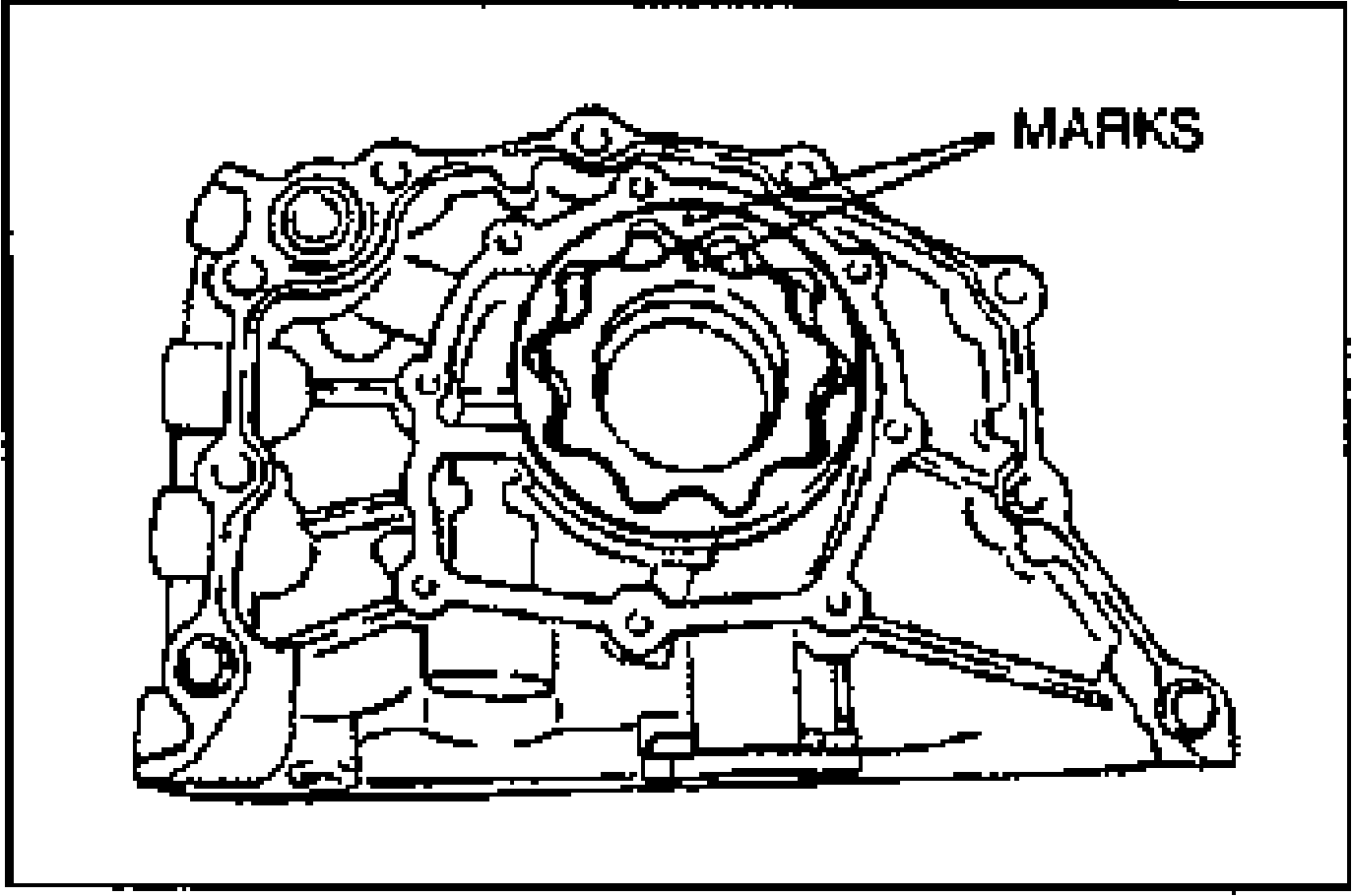

- 2Install the inner and outer rotors into the oil pump body with the marks aligned as shown.
Pump cover
- 1Install the pump cover.
- 2Verify that the oil pump rotates smoothly when turned by hand.
| Specification | Value |
|---|---|
| Pump cover | 5.9 - 8.8N·m |
Pump cover
5.9 - 8.8N·m
Oil seal
- 1Apply clean engine oil to the new oil seal.
- 2Install the oil seal into the oil pump body by hand.
- 3Press the oil seal into the oil pump body by using a SST.
| Specification | Value |
|---|---|
| ProtrusionOil seal | 0–0.7 mm {0–0.03 in}mm |
ProtrusionOil seal
0–0.7 mm {0–0.03 in}mm
