WIRING HARNESS / MAIN FUSE / FUSE (PLATE TYPE)

GI-17spec table
Continued from GI-16

Wiring Color Codes

Two-color wires are indicated by a two-color code symbol. The first letter indicates the base color of the wire and the second the color of the stripe.

Wiring color codes

B
COLORBlack
BR
COLORBrown
G
COLORGreen
GY
COLORGray
L
COLORBlue
LB
COLORLight Blue
LG
COLORLight Green
O
COLOROrange
P
COLORPink
R
COLORRed
V
COLORViolet
W
COLORWhite
Y
COLORYellow

MAIN FUSE

Removal / Installation

Main Fuse Removal / Installation

  1. 1
    Disconnect the negative battery cable.

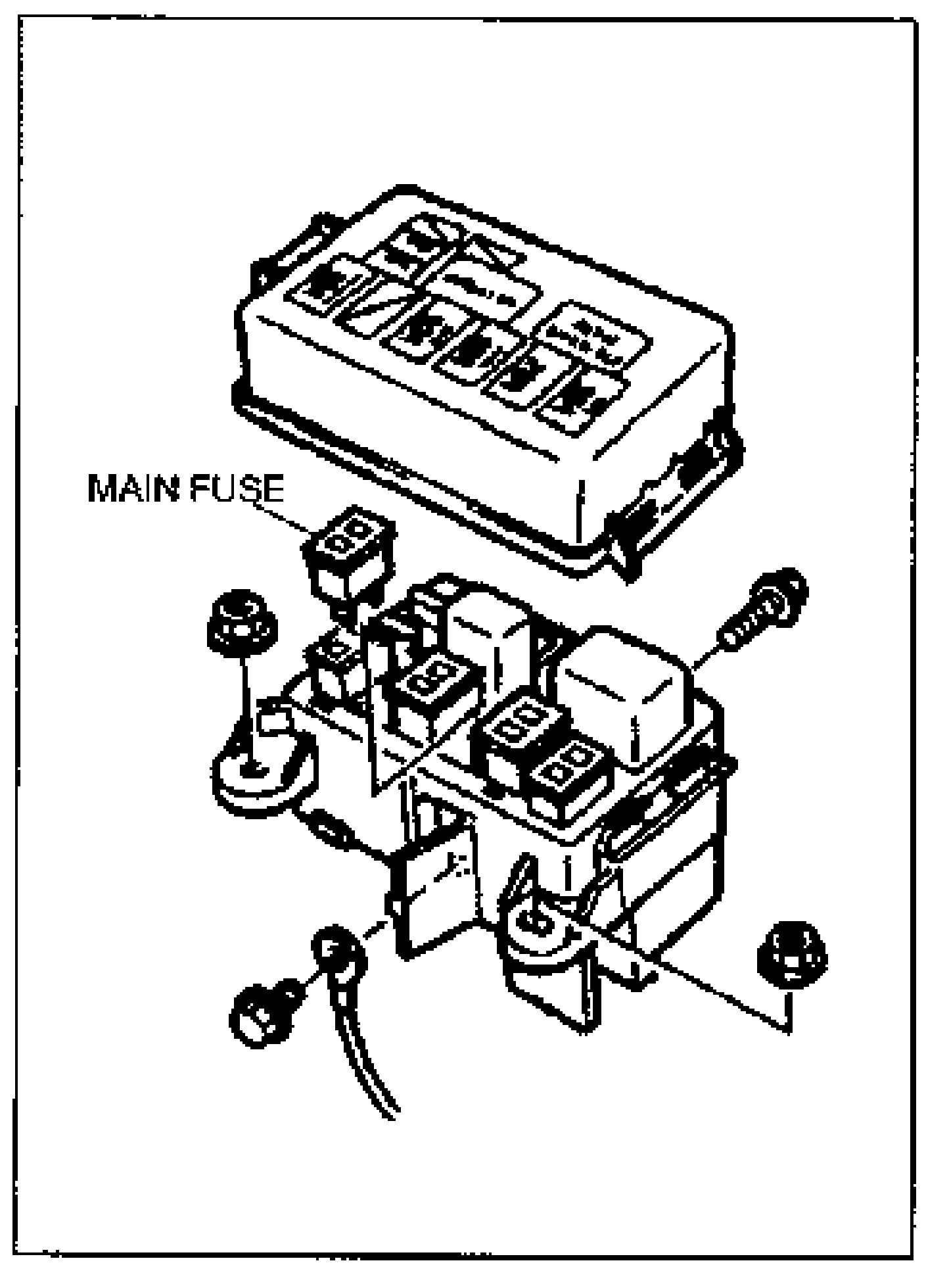

    Exploded view of the main fuse block, showing the main fuse, mounting nuts, mounting bolts, and the fuse block lid. The main fuse is labeled.
  2. 2
    Remove the main fuse block mounting nuts.
  3. 3
    Open the main fuse block lid and remove the main fuse mounting bolts.
  4. 4
    Remove the main fuse.
  5. 5
    Install in the reverse order of removal.

FUSE (PLATE TYPE)

Removal / Installation

Fuse (Plate Type) Removal / Installation

  1. 1
    Use the puller found on the back of the fuse block cover to remove the fuses. If one or more of the fuses are burnt, check for a short in the harness.
    Determine and correct the cause of the burnt fuse before replacing it. If the fuse is replaced before doing this, it may burn again.
    Illustration of a plate-type fuse and the puller (found on the back of the fuse block cover) used to remove it; an arrow shows the fuse being pulled out. Labels: PULLER, FUSE.
  2. 2
    Install in the reverse order of removal.
